ML200-M350 Matrix Light Set for DJI M300/M350
💡 High-Power, Wide-Coverage Night Illumination System: The ML200-M350 Matrix Light Set is a professional matrix light set designed for the DJI M300 and M350 platforms. Featuring dual 400W matrix lights with a total power of 800W and a maximum illumination area of 4800m², it provides exceptional night visibility for critical operations.
Product Overview
The ML200-M350 Matrix Light Set is a purpose-built, high-intensity lighting solution engineered to transform the DJI M300 and M350 into powerful aerial illumination platforms. It is designed for public safety, search and rescue, critical infrastructure inspection, and other night operations where visibility is paramount. The system features two 400W matrix lights mounted on both sides of the drone’s landing gear, delivering a combined 800W of powerful, wide-area illumination that can cover up to 4800m². When combined with the TK3 Tethered Power System, the ML200-M350 forms a high-power, long-endurance illumination system, providing sustained lighting for extended missions. Its quick-installation design and one-click operation ensure rapid deployment and ease of use in the field.
For emergency responders and surveillance teams, this system delivers an unmatched 800W drone searchlight array that illuminates vast areas in a single flight. As a high-lumen DJI M350 night illumination payload, it provides a total luminous flux of up to 85,360 lm, ensuring crystal-clear visibility for thermal or visual cameras. Its dual mounting structure makes it a versatile M300/M350 matrix floodlight, catering to mixed fleet operations. Furthermore, when paired with the TK3 ground power supply, it operates as an unlimited endurance tethered drone light, guaranteeing uninterrupted illumination throughout the entire mission period.
Key Features

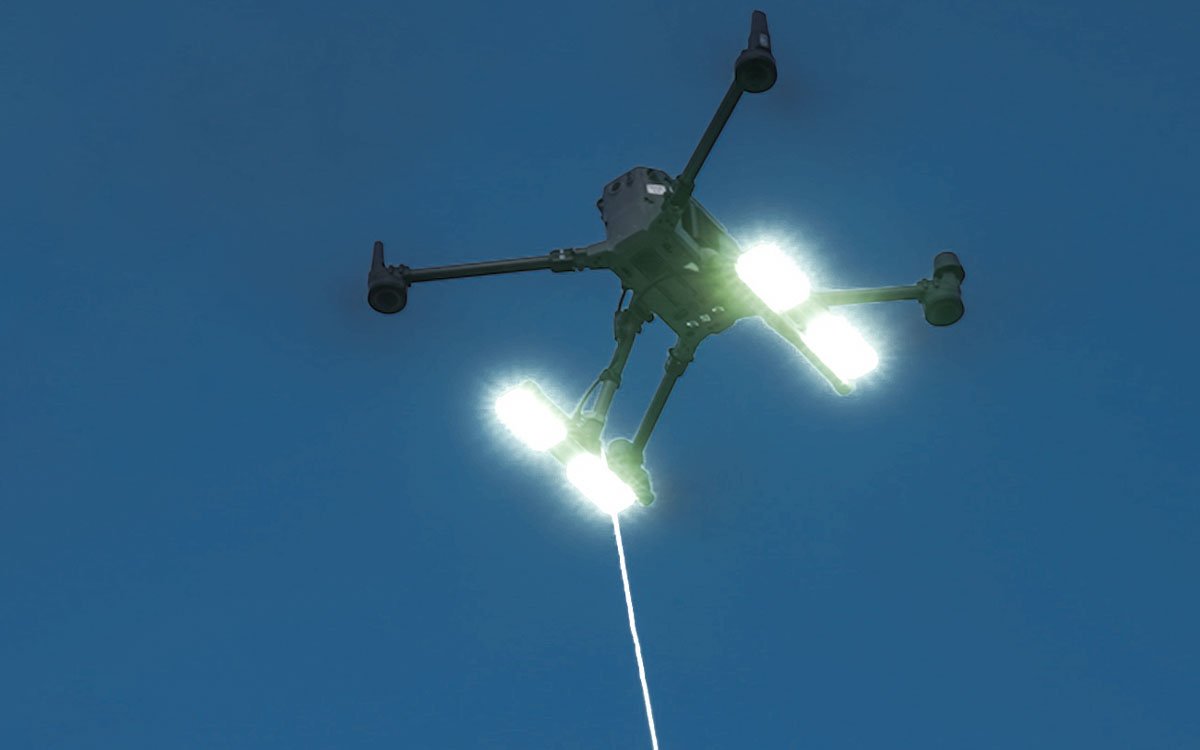

- High Brightness, Wide Coverage for Clearer Night Vision: Dual 400W matrix lights, mounted on both sides of the DJI M350 landing gear, provide high-brightness, large-area illumination support for night operations. Total power: 800W.
- One-Click Operation for Instant Illumination: Features a simple, one-click activation for the ML200-M350 Matrix Light Set, bringing efficiency and convenience to night operations and allowing operators to focus on the mission.

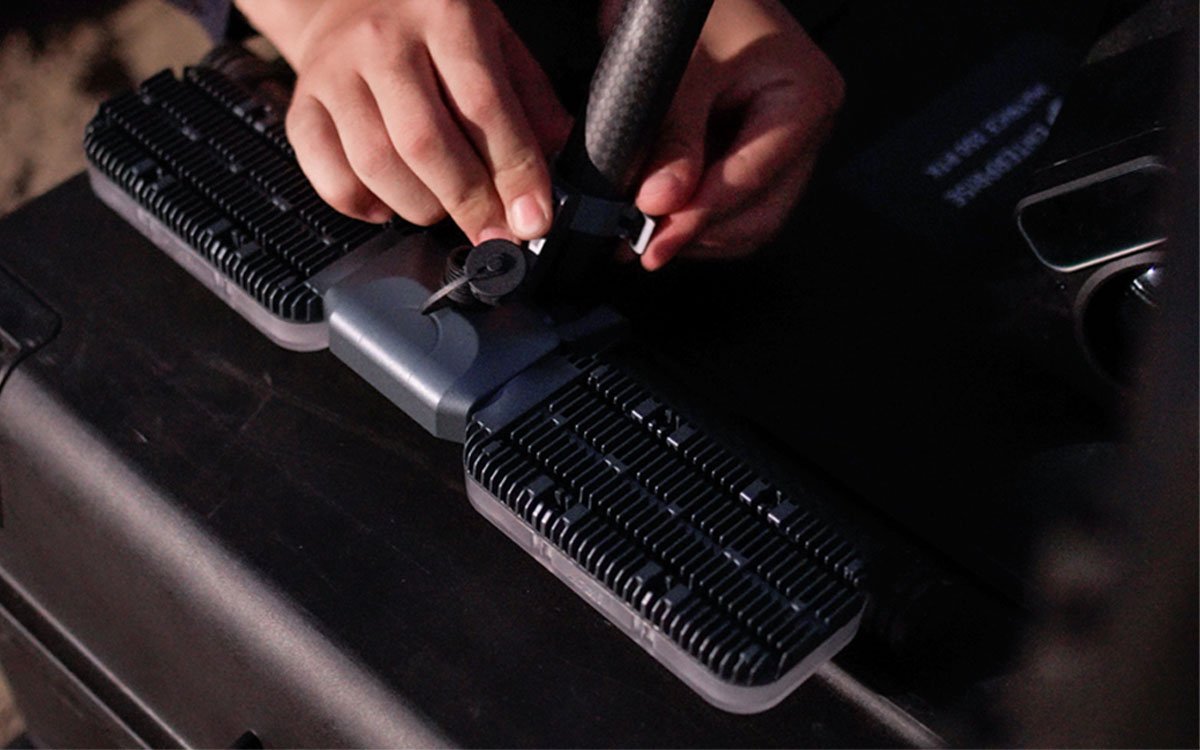

- Quick Installation for Double Efficiency: Adopts an ingenious quick-release design, allowing operators to quickly install and remove the system, significantly improving deployment efficiency for emergency mission requirements.
- Dual Model Compatibility: Can be mounted on both DJI M300 and M350 drones, meeting diverse application needs and providing flexibility for fleet operators.
- Outstanding Performance and Reliable Illumination: Designed for demanding environments with IP55 dust and water protection and a wide operating temperature range of -20°C to 50°C, ensuring reliable performance in various weather conditions.
Product Display
Technical Specifications
| Model | ML200-M350 |
|---|---|
| Dimensions / mm | L:304.5 x W:106.5 x H:52.7 |
| Installation Method | Fast detachable |
| Lamp Head Angle Adjustment | None |
| Total Weight / g | < 1000 |
| Rated Voltage / V | DC48 |
| Total Power / W (Ambient Temp: ≤25°C) | 800 ± 10% |
| Total Luminous Flux / lm (Ambient Temp: ≤25°C) | 85360 ± 10% |
| Luminous Efficacy / (lm/W) | 110±10% |
| Illumination Distance | 50 m / 40 m / 30 m |
| Area of the Light Spot / m² (with 5 lx as illuminance at the edge) | 4300±4% / 3632±4% / 2463±4% |
| Illuminance at the Center of the Light Spot / lx (Ambient Temp: ≤25°C) | 30±10% / 45±10% / 75±10% |
| Protection Class | IP55 |
| Work Setting | Temperature: -20°C to +50°C; Humidity: 15% to 95% |
| Storage Conditions | Temperature: -20°C to +60°C; Humidity: 15% to 95% |
📌 Unlimited Endurance with Tethered Power: When combined with the TK3 Tethered Power System, the ML200-M350 provides ultra-long, stable illumination, making it an ideal solution for extended night operations, search and rescue, and critical infrastructure monitoring. The ground tethered power system ensures the lights remain operational for as long as the mission requires.
Downloads & Support
📄 Manuals
- User Manual — ML200-M350 User Manual (Available for download)
- TK3 Tethered Power System Guide — Integration and operation guide
⚡ All technical data sourced from official CZI product documentation. The ML200-M350 is specifically designed for DJI M300 and M350 platforms. For the most current information, please refer to the manufacturer’s website. Explore more drone illumination solutions in our store.
