LP12 Searchlight Broadcasting System for M30/T and Industrial Drones
🔦 For DJI M30/T: The LP12 is a two-in-one searchlight and broadcasting system designed for rapid deployment. Weighing only 288g, it combines powerful 122dB sound with a 100m effective illumination range in a compact, quick-mount design.

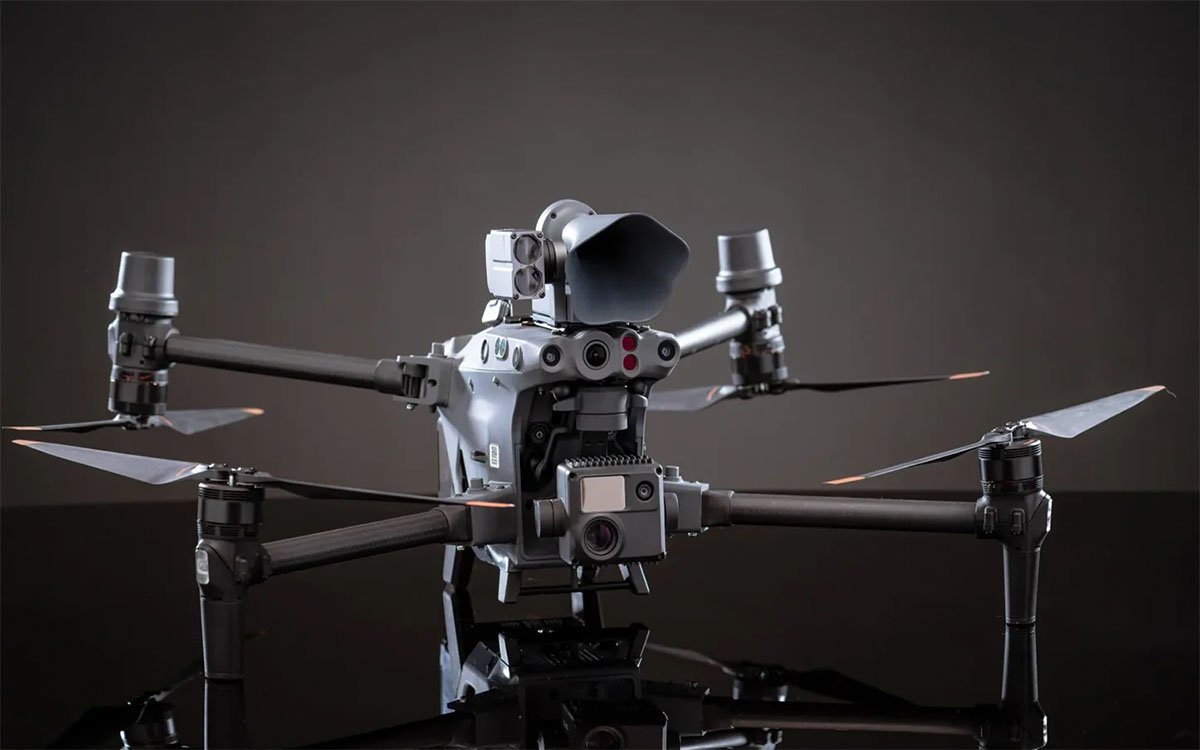

Product Overview
The LP12 Searchlight Broadcasting System is a testament to efficient, integrated design. It combines a powerful broadcasting system and a high-intensity searchlight into a single, ultra-lightweight payload weighing just 288 grams. This “two-in-one” approach maximizes the capabilities of the DJI M30/T platform while minimizing weight, ensuring longer flight durations and preserving the drone’s agility. Its unique quick mount and dismount design allows for effortless installation and removal, making it an ideal tool for operators who need to switch between missions rapidly.

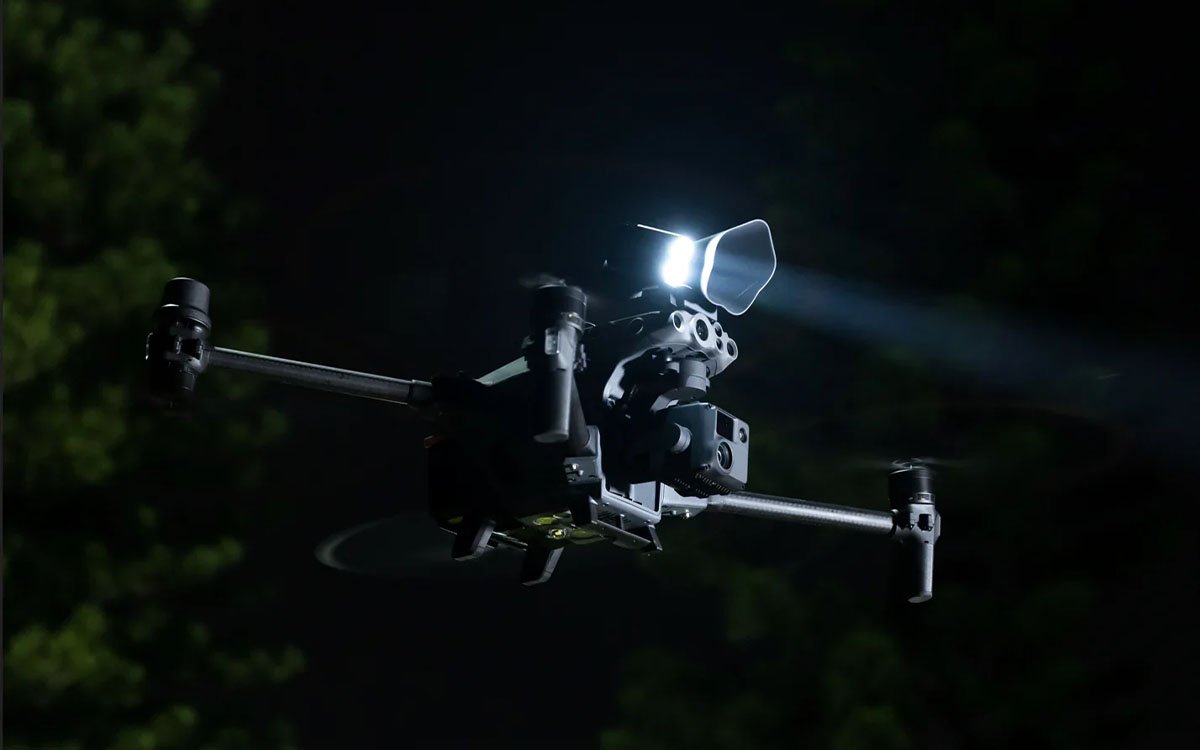

In real-world operations, the LP12 UAV searchlight & speaker demonstrates exceptional versatility across various industry applications. For nighttime security patrols and perimeter monitoring, its 100-meter effective illumination range enables drones to inspect vast areas with clarity, identifying potential threats from a safe distance. In emergency response and search-and-rescue missions, the system serves as a critical communication tool, issuing clear voice commands and locating stranded individuals in dark or complex terrains. Furthermore, for infrastructure and power line inspections, operators can leverage its dual functions to ensure site safety and command ground crews, significantly reducing operational time and increasing overall mission efficiency.
Key Features
- One Device, Two Functions — Small and Powerful: The LP12 integrates broadcasting and lighting in one device, weighing only 288g. This lightweight design contributes to longer flight durations, allowing you to complete more tasks in a single flight.
- Excellent Sound and Light Effects: Utilizes LRAD Sound Technology and precision optical imaging to deliver 122dB ultra-high sound pressure loudhailer system for clear communication and an effective illumination distance of up to 100 meters.

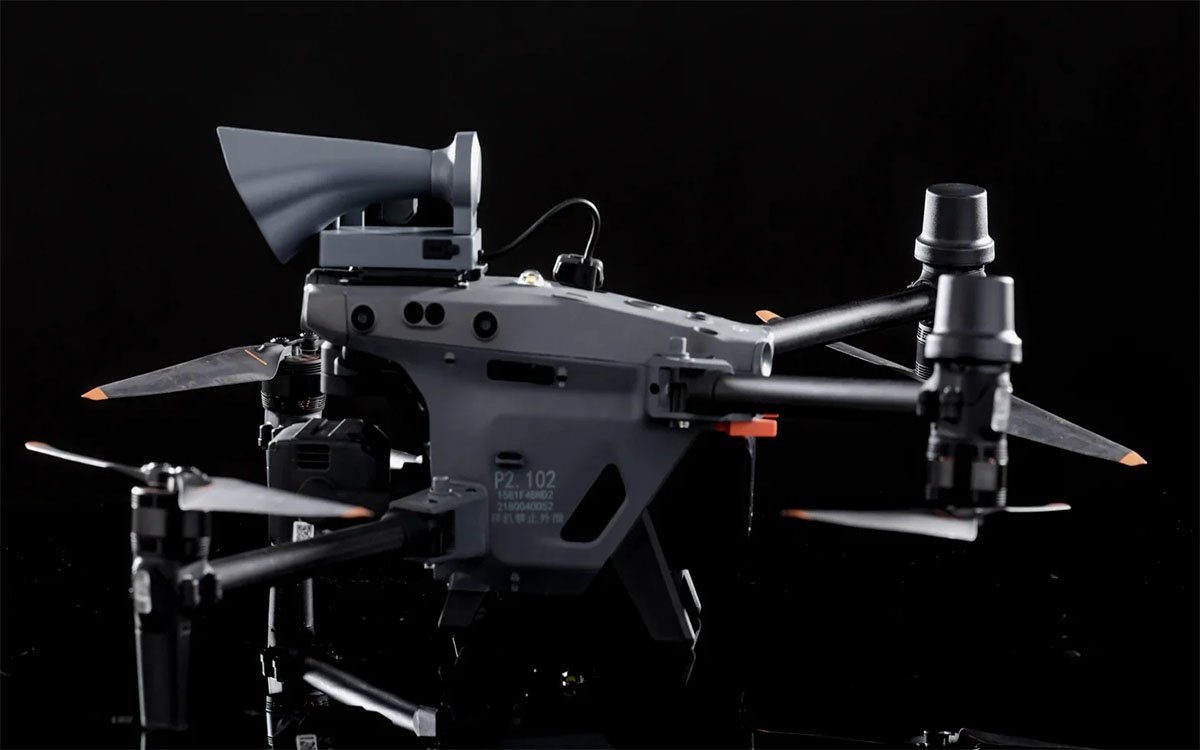

- Bionic Aesthetic Appearance and Excellent Technique: Features a unique appearance with morning glory petal design, representing a perfect integration of industrial design and advanced production techniques for both form and function.

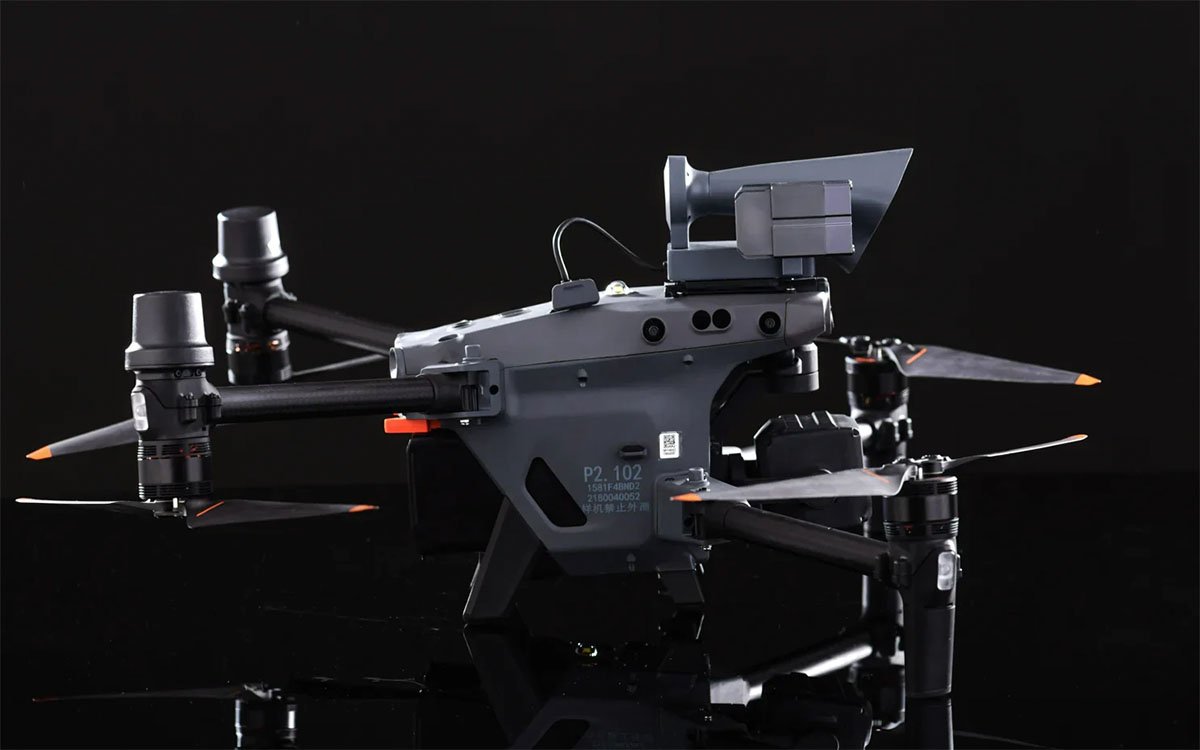

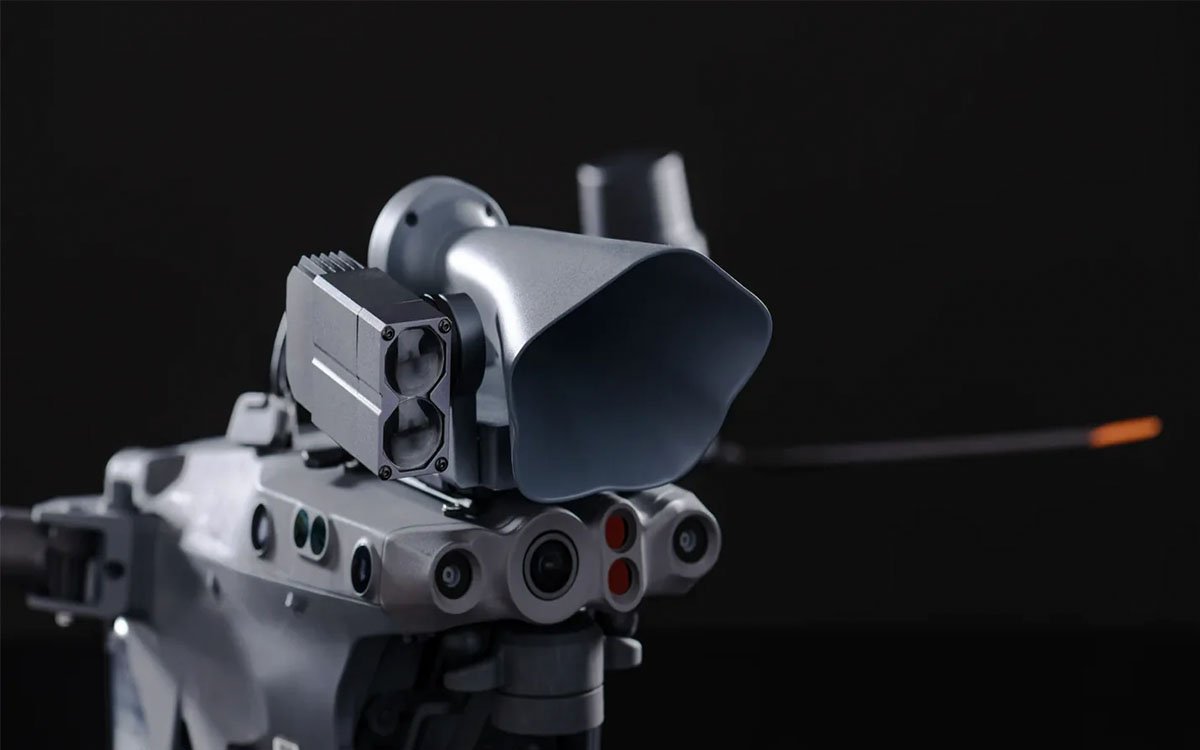

- Quick Mount and Dismount for Easy Use: The LP12 Searchlight Broadcasting System features a unique assembly and disassembly design, allowing for rapid deployment and removal. It is perfectly adapted to the M30/T via the OSDK interface, ensuring seamless integration. It is also fully supported by the DJI Pilot and DJI Pilot 2 apps for effortless operation.

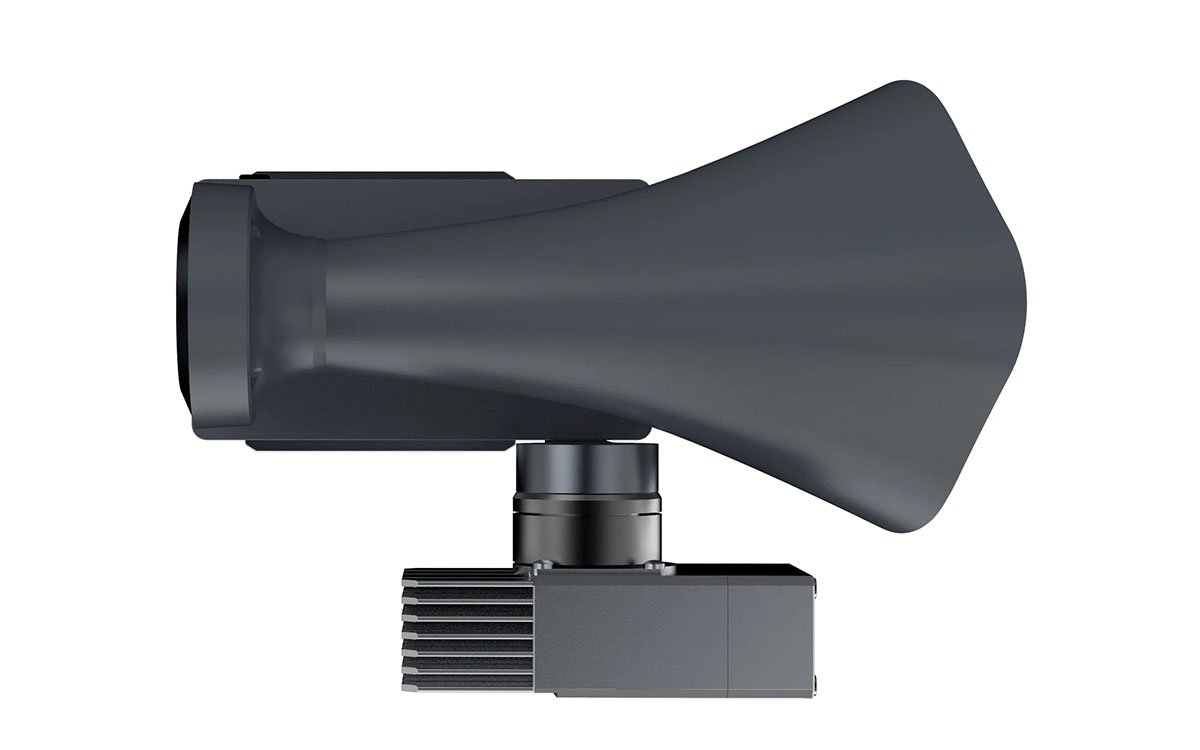

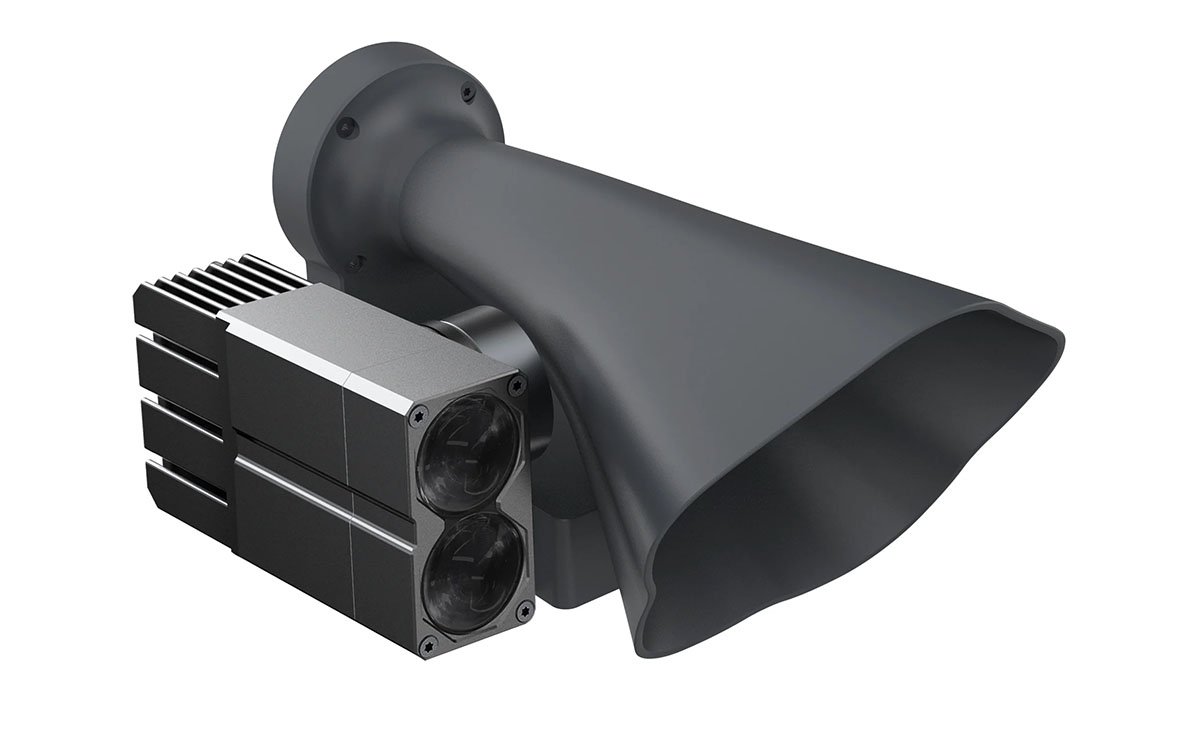

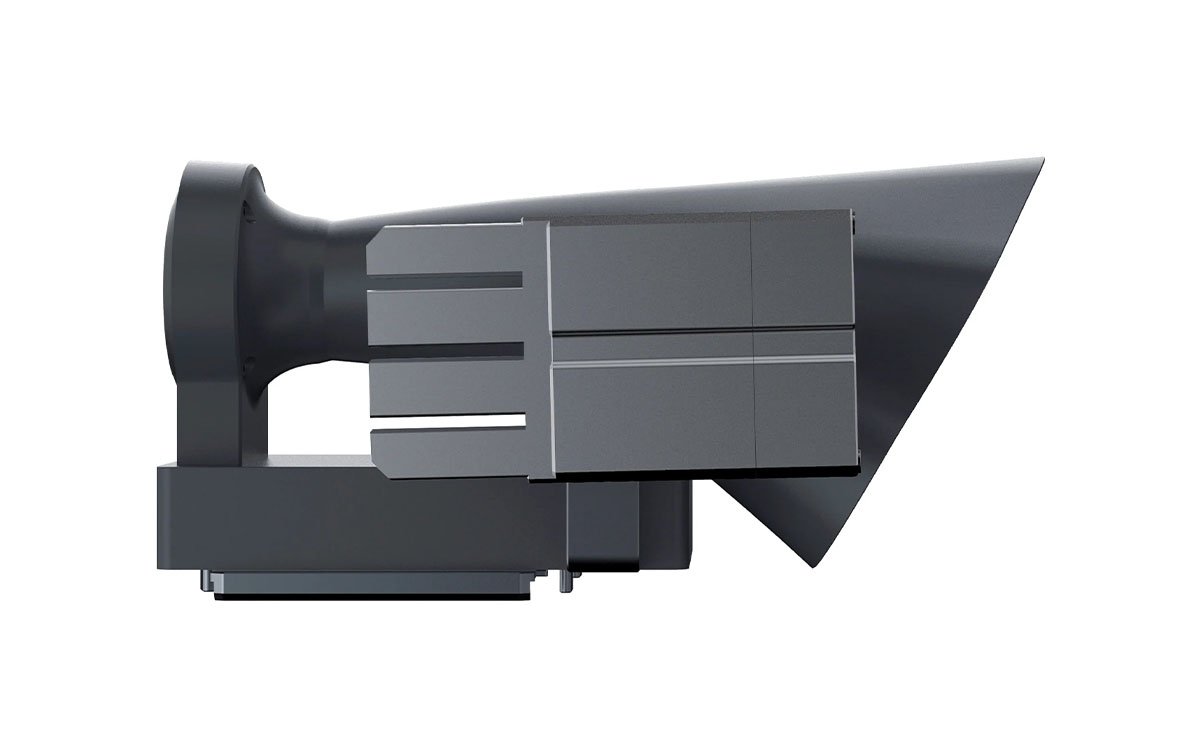

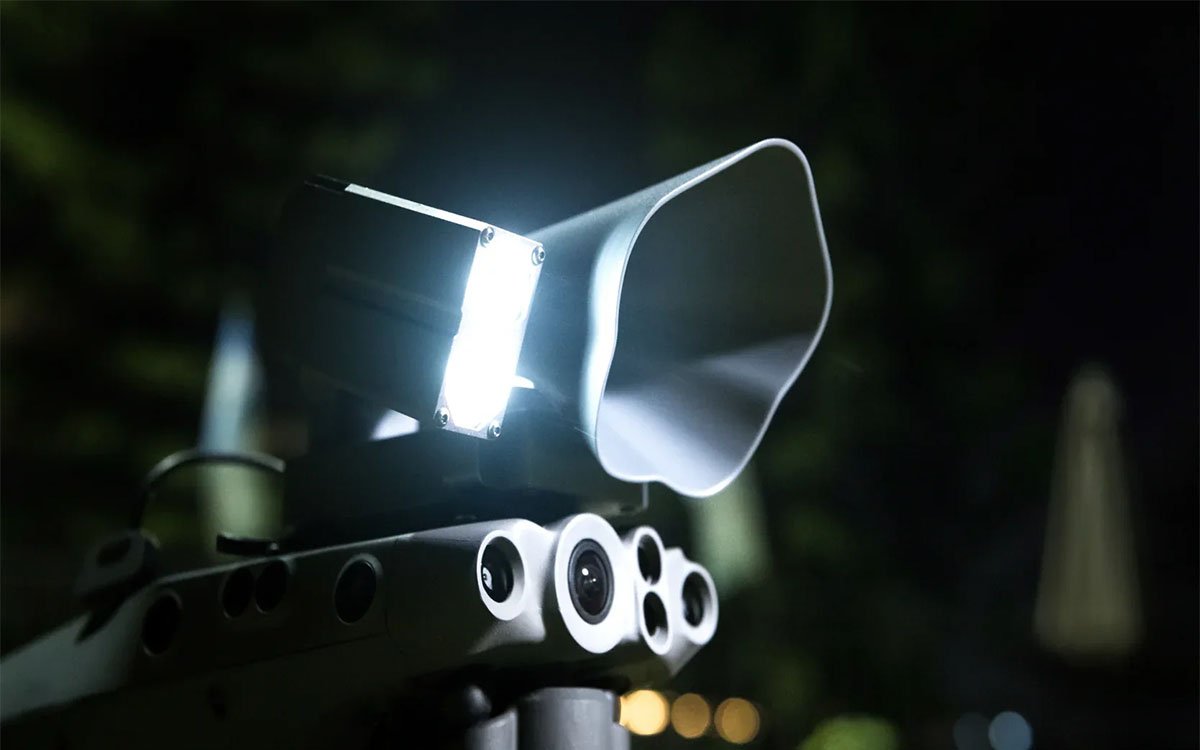

Product Display
Technical Specifications
| Model | LP12 Searchlight Broadcasting System |
|---|---|
| Electrical Interface | DJI PSDK |
| Weight (without/with mount) | 288 g / 306 g |
| Dimensions | 156×109×84 mm |
| Searchlight Power | Regular: 30 W / Ultra bright & Flashing: 40 W |
| Speaker Power | 15 W |
| Power Supply Voltage | 24 V |
| Luminous Flux | 2122±3% lm |
| Searchlight FOV | 13° |
| Spot Diameter | 34 m (distance: 150 m) 22.8 m (distance: 100 m) 29.6 m (distance: 130 m) 11.4 m (distance: 50 m) |
| Illuminated Area | 102 m² (distance: 50 m) 407 m² (distance: 100 m) 688 m² (distance: 130 m) 917 m² (distance: 150 m) |
| Central Illuminance | 25 Lux (distance: 50 m) 6.3 Lux (distance: 100 m) 2.5 Lux (distance: 130 m) 1.7 Lux (distance: 150 m) |
| Gimbal Movement Range | Pitch: -120° to +45° (same as drone camera) |
| Maximum Sound Pressure | 122 dB |
| Effective Broadcasting | 200 m @76 db 350 m @69 db |
| Broadcasting Methods | Live broadcasting Upload the recording files Play audio file Text To Speech (supports multi-language) Background sound |
| Audio Format | MP3, WAV, M4A, FLAC, AAC |
| App Support | DJI Pilot, DJI Pilot2 |
| Operating Temperature | -20°C to 50°C |
📌 Optimized for M30/T: The LP12 Searchlight Broadcasting System is specifically engineered for the DJI M30 and M30T platforms. Its quick-mount design and OSDK compatibility ensure a seamless, plug-and-play experience, allowing you to deploy its powerful lighting and broadcasting capabilities in seconds.
Downloads & Support
📄 Firmware & Manuals
- LP12 Firmware — V03.08.00.08 (2025-05-08) + Release Notes
- Firmware Upgrade Guide — Step-by-step instructions (2025-08-20)
- User Manual — LP12 User Manual (2025-05-08)
⚡ All technical data sourced from official CZI product documentation. For the most current information, please refer to the manufacturer’s website. The LP12’s quick-mount design is specific to the DJI M30/T platform. You can explore more aerial broadcast systems in our store or return to our main product listing.
