Ground Station Pro Antenna Kit (SA-ANT-C-01) – 12dBi dual-polarized MIMO array
📡 Professional Dual-Polarized 2×2 MIMO Array: The Ground Station Pro Antenna Kit is engineered for enterprise UAV operations demanding extreme reliability. Featuring a 12dBi dual-polarized drone antenna kit MIMO array with automatic polarization tracking, it maintains stable links beyond 15 km (with auto-tracking). Includes a precision GNSS antenna and IP67 weatherproofing for fixed-site or mobile deployment.
Product Overview
The SoarApex Ground Station Pro Antenna Kit represents the pinnacle of UAV ground station antenna technology. Originally developed for enterprise and government UAV operations, this kit brings professional-grade antenna diversity to advanced operators. Featuring a 12dBi dual-polarized drone antenna kit with automatic beam tracking, it maintains rock-solid link quality through 360° aircraft rotation at ranges beyond 15 km.
In dense urban canyons or industrial sites, the dual-polarized design ensures polarization mismatch loss is minimized regardless of aircraft attitude. As a comprehensive 2×2 MIMO ground station antenna, it dramatically improves multipath rejection and doubles data throughput compared to single-polarization antennas. This Ground Station Pro Antenna Kit is the ultimate BVLOS drone antenna array for long-range missions. With its included GNSS antenna, it also serves as a precision timing GNSS antenna set for systems requiring GPS/GLONASS/BeiDou/Galileo synchronization.
Product Display

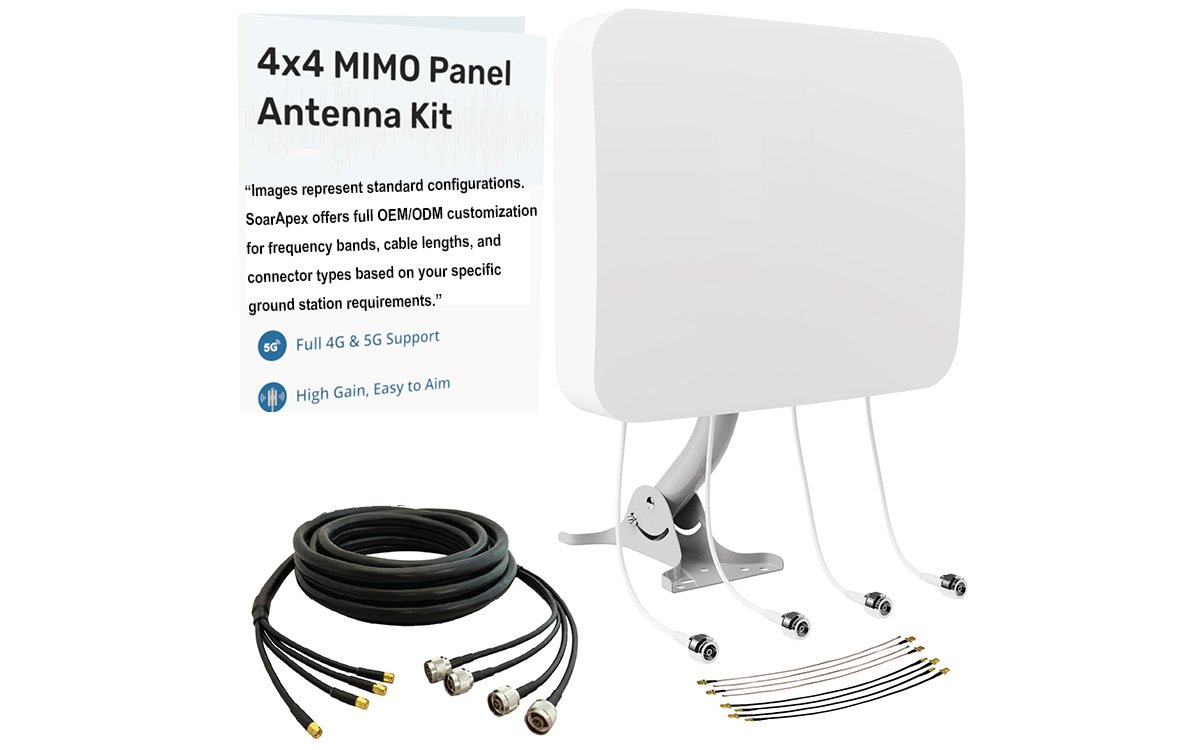

What’s in the Box
- 4× 12dBi Dual-Polarized Panel Antennas — 2×2 MIMO ground station antenna array
- 4× LMR400 Ultra-Low-Loss Cables — 2m length, N-Type to TNC

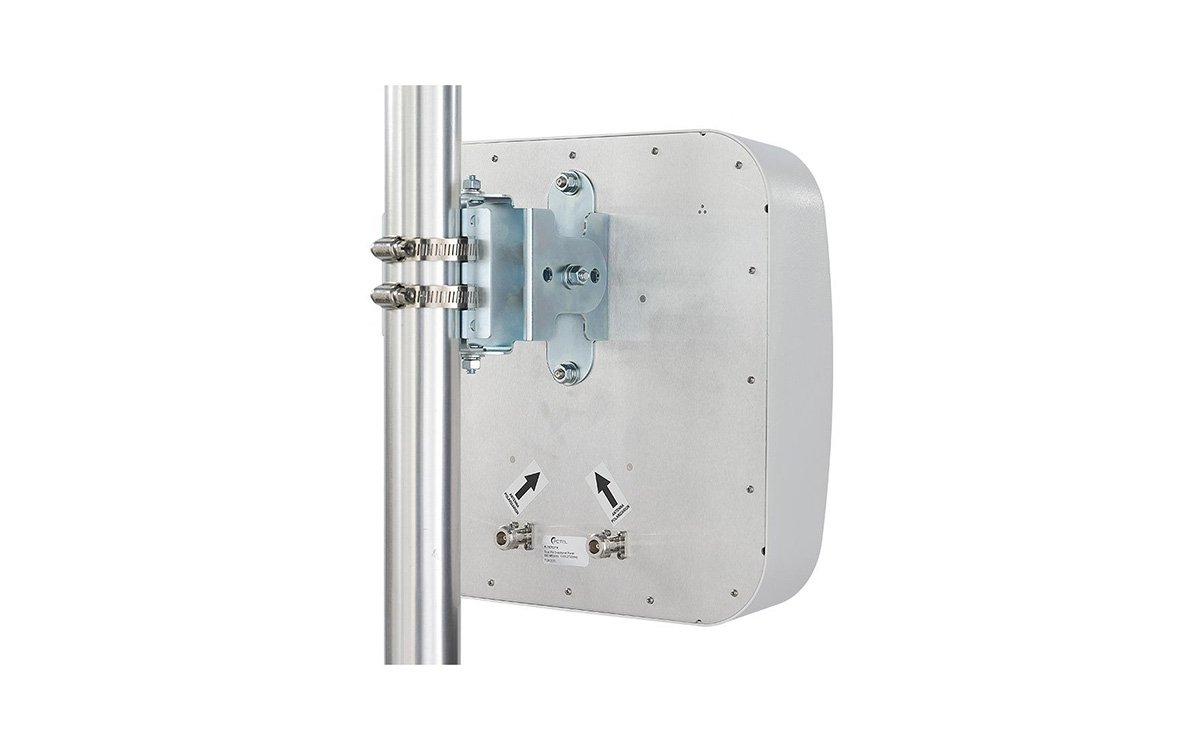

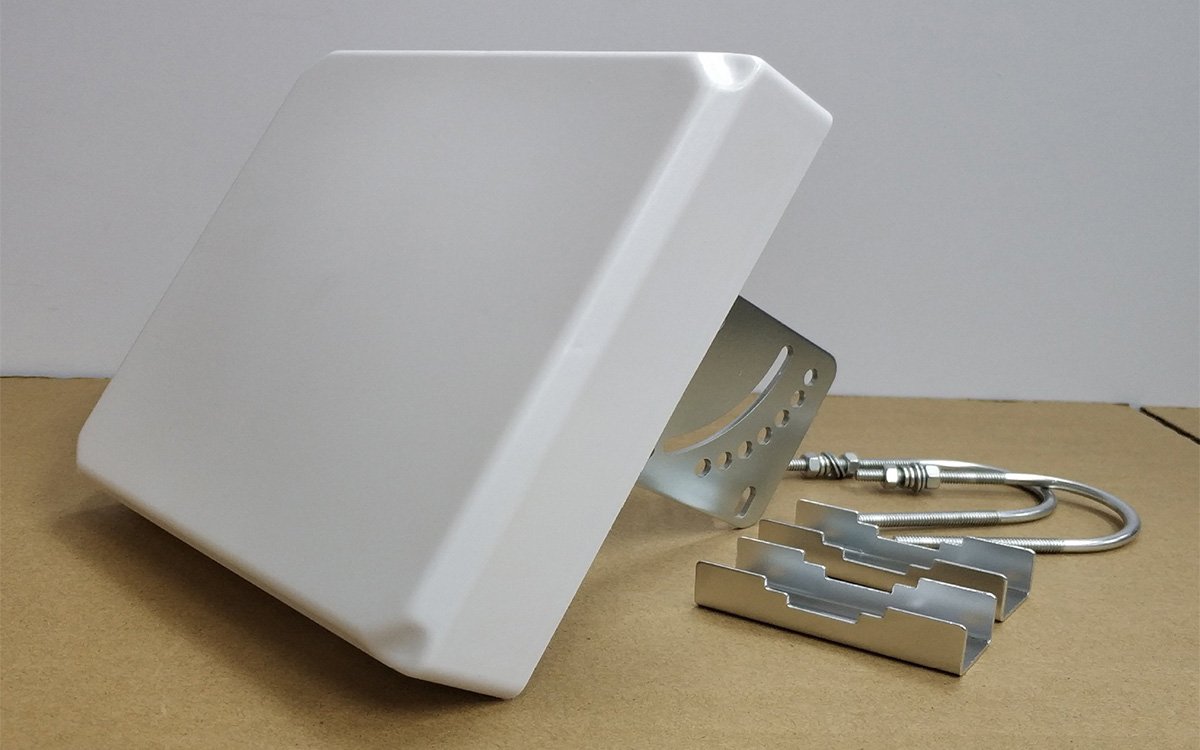

- 1× Heavy-Duty Mast Mount — adjustable azimuth and elevation, fits 25-50mm masts
- 1× GNSS Precision Antenna — GPS L1/L2 + GLONASS + BeiDou + Galileo
- 1× Calibration Kit — phase-matched cables for optimal MIMO performance
- 1× Multi-Mission Antenna Integration Guide — professional reference manual
Engineered for Professional Demands
The dual-polarized design (±45° slant) ensures that polarization mismatch loss is minimized regardless of aircraft attitude. Combined with the 2×2 MIMO ground station antenna array, this Ground Station Pro Antenna Kit delivers:
- Up to 2× data throughput compared to single-polarization antennas
- Automatic polarization tracking — no manual adjustment needed during flight
- Superior multipath rejection in complex environments (urban canyons, industrial sites)
🏆 The Professional’s Choice: “We tested the Ground Station Pro kit against five competing solutions. The signal stability at 15 km was unmatched — this is now our standard ground station antenna.” — Engineering Lead, Commercial UAV Operator
Compatible Platforms
The Ground Station Pro Kit is designed for professional ground stations and enterprise UAV operations with N-Type or TNC antenna ports.
Confirmed Compatible:
- ✅ Custom ground stations with N-Type / TNC ports
- ✅ MIMO 2×2 capable telemetry radios
- ✅ Enterprise UAV fleet ground control systems
- ✅ Fixed-site and mobile ground stations
- ✅ Systems requiring GNSS precision timing (GPS/GLONASS/BeiDou/Galileo)
Optimal Use Cases:
- 📌 Long-range BVLOS operations (> 10 km)
- 📌 Urban and industrial environments with high interference
- 📌 Fixed-site command centers with permanent installation
- 📌 Mobile ground stations with rapid deployment requirements
📌 Not sure if this kit fits your system? Contact our engineering team with your system specifications — we’ll provide a detailed compatibility analysis and recommend the optimal configuration.

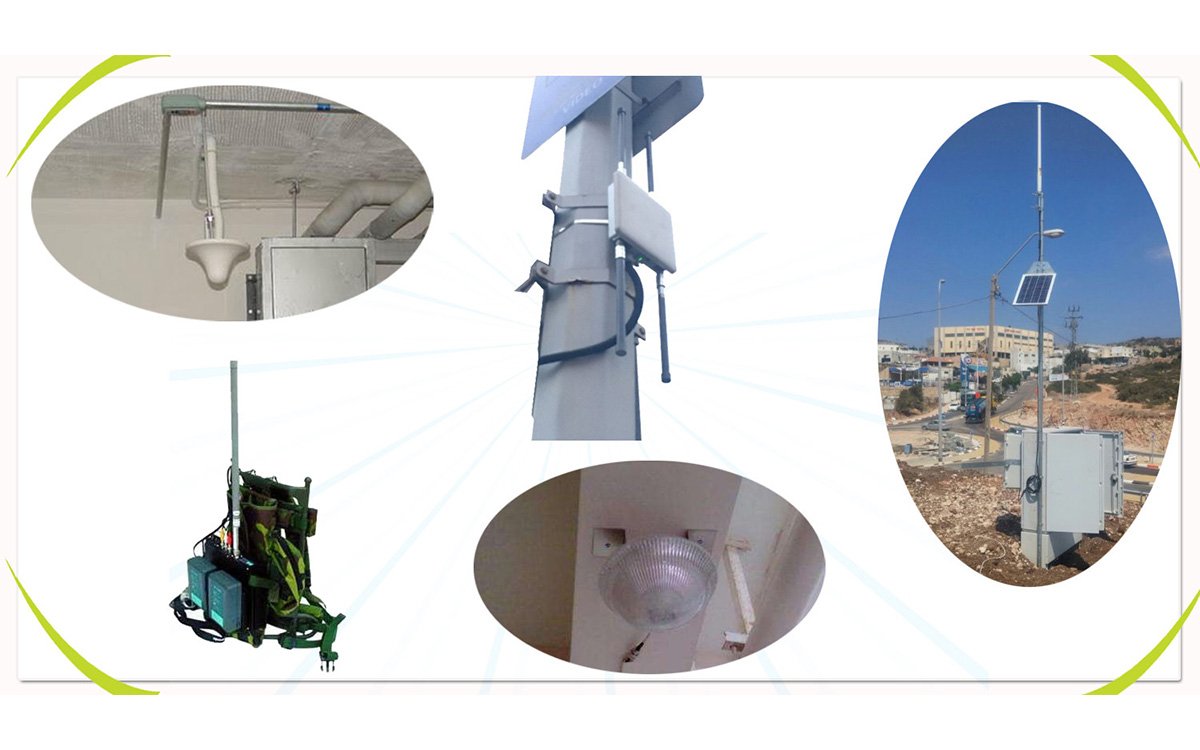

Installation Overview
- Mount the Mast Bracket — Secure the heavy-duty mast bracket to your ground station mast or tripod. Supports mast diameters from 25mm to 50mm.
- Install Antennas & GNSS — Mount the four panel antennas and the GNSS antenna to the bracket. Use the included hardware for secure attachment.
- Connect the Phase-Matched Cables — Run the LMR400 cables from each antenna to your ground station or telemetry radio. Phase-matched cables ensure optimal MIMO performance.
🔧 Professional Tip: For optimal performance, ensure all four antenna cables are the same length (phase-matched). The included calibration kit ensures your MIMO system operates at peak efficiency.
Technical Specifications — Full Detail
| Frequency Band | Dual-Band (Custom Tuning Available — 400MHz to 6GHz) |
|---|---|
| Gain | 12 dBi (Dual-Polarized) |
| Polarization | Dual-Linear ±45° Slant |
| VSWR (Max) | < 1.3:1 |
| Beam Width (HPBW) | 30° H × 30° V |
| Max Range (LOS) | 15 km+ (with auto-tracking) |
| Connector Type | N-Type (Antenna) / TNC (Cable ends) |
| Weatherproofing | IP67 |
| Weight (per antenna) | 210g |
| Dimensions | 340mm × 120mm × 35mm (each) |
| Operating Temperature | -40°C to +70°C |
| Housing Material | UV-stabilized polycarbonate with aluminum backing |
| Mounting Mast Diameter | 25mm – 50mm |
| GNSS Support | GPS L1/L2, GLONASS, BeiDou, Galileo |
| MIMO Configuration | 2×2 (4 antennas total) |
Why Dual-Polarized MIMO Matters
In challenging environments, radio signals reflect off buildings, terrain, and other surfaces — causing multipath interference that degrades link quality.
The Ground Station Pro Kit’s dual-polarized MIMO array solves this problem by:
- Receiving signals on two orthogonal polarizations — if one polarization is blocked or faded, the other maintains the link
- Combining signals intelligently — the MIMO radio combines both polarizations to extract the maximum signal quality
- Tracking through aircraft rotation — as the UAV turns, the antenna polarization shifts. Dual polarization ensures constant alignment regardless of aircraft attitude
📖 Included: Multi-Mission Antenna Integration Guide — This professional reference manual covers polarization principles, MIMO deployment strategies, interference mitigation, and real-world deployment case studies. It’s the same training material used by our enterprise clients.
Frequently Asked Questions
What makes this kit different from Kit B?
Kit C features a dual-polarized 2×2 MIMO array with automatic polarization tracking, while Kit B is a single-polarization directional array. Kit C is designed for professional and enterprise operations requiring maximum link reliability at extreme ranges.
Do I need a MIMO-capable radio to use this kit?
Yes. The dual-polarized array is designed for MIMO 2×2 capable telemetry radios. For single-polarization systems, Kit B is the recommended option.
What’s the real-world performance in urban environments?
In dense urban environments, users report 6-10 km with stable links. The dual-polarized MIMO array significantly improves performance in multipath environments compared to single-polarization antennas.
Can I use this for fixed-site installations?
Absolutely. The heavy-duty mast mount is designed for permanent installation. The IP67 weatherproofing ensures reliable operation in all weather conditions.
What GNSS systems does the included GNSS antenna support?
The included GNSS antenna supports GPS L1/L2, GLONASS, BeiDou, and Galileo. Perfect for systems requiring precision timing and position data.
Do you offer custom frequency tuning?
Yes. Our engineering team can custom-tune the antenna array to specific frequency bands for your application. Contact us with your requirements.
