FS32 Logistic Payloads Kit for DJI FlyCart 30
📦 Versatile Dual-Payload System: The FS32 Logistic Payloads Kit is designed for the DJI FlyCart 30, enabling compatibility with GL60C Plus (searchlight), MP130C (loudspeaker), and TH4C (drop system). It greatly enhances mission versatility, allowing operators to configure sound, light, and delivery capabilities as needed.
Product Overview

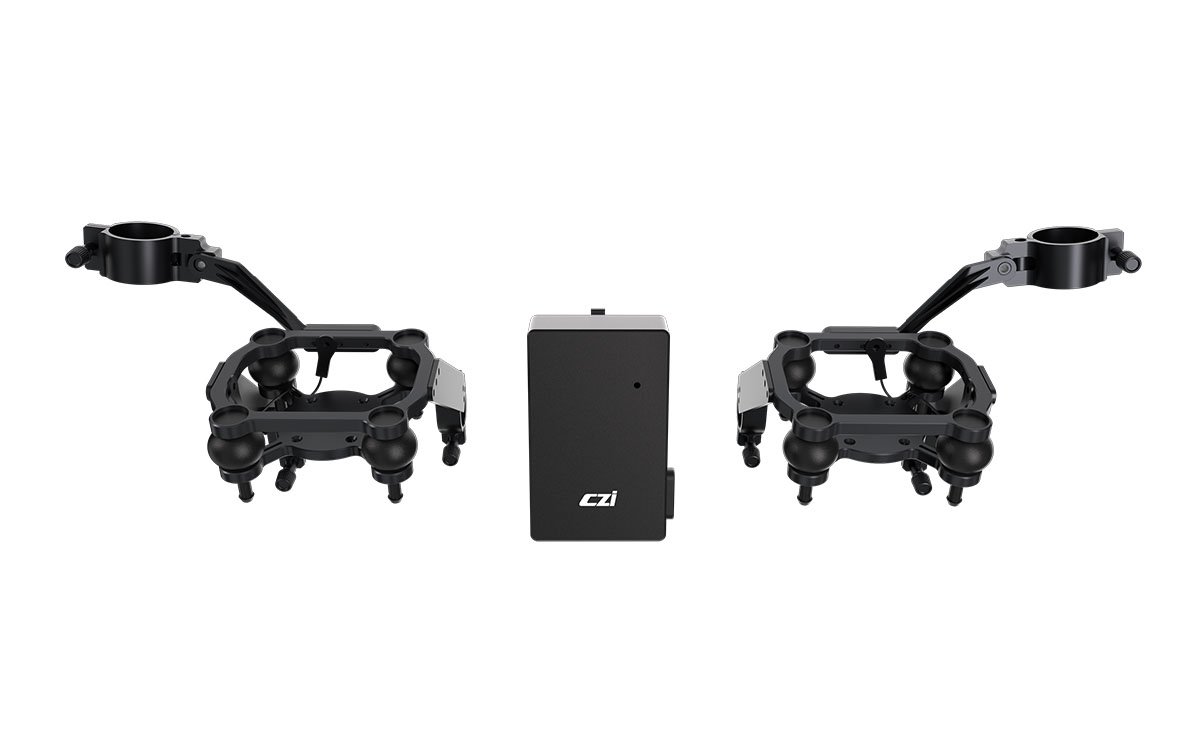

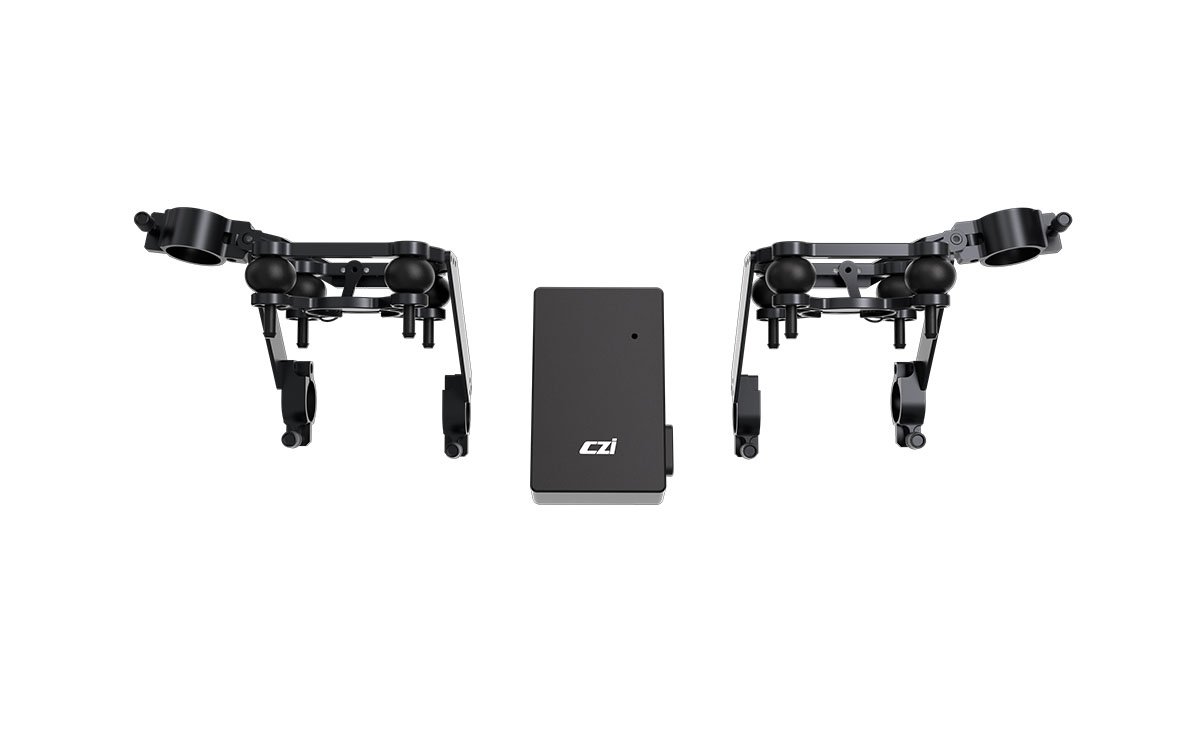

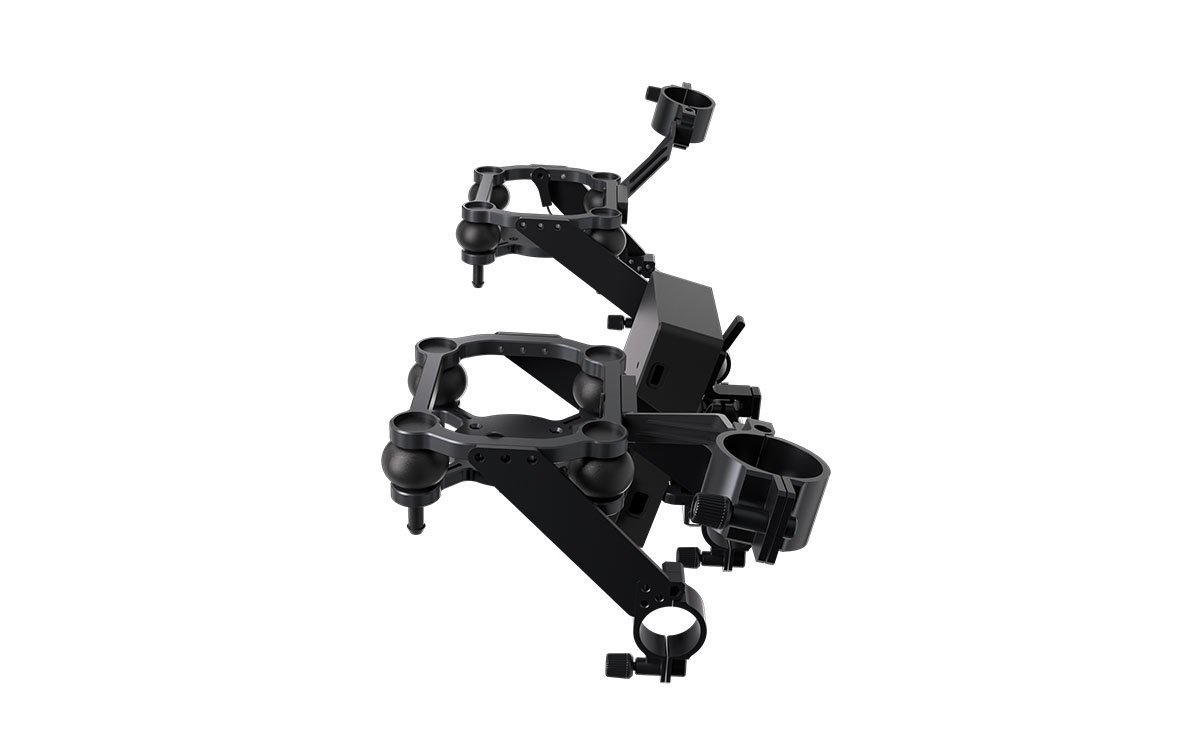

The FS32 Logistic Payloads Kit is a comprehensive payload integration kit that unlocks the full mission potential of the DJI FlyCart 30. By providing a standardized interface and control system, it allows operators to easily swap between and combine critical mission payloads. The FS32 Logistic Payloads Kit system features a dual-gimbal configuration, where the left gimbal interface is dedicated to the GL60C Plus searchlight, and the right gimbal interface is interchangeable, supporting either the MP130C loudspeaker or the TH4C drop system. This modularity allows for rapid mission reconfiguration, transforming the FlyCart 30 from a cargo drone into a versatile platform for emergency response, night operations, and precision delivery.

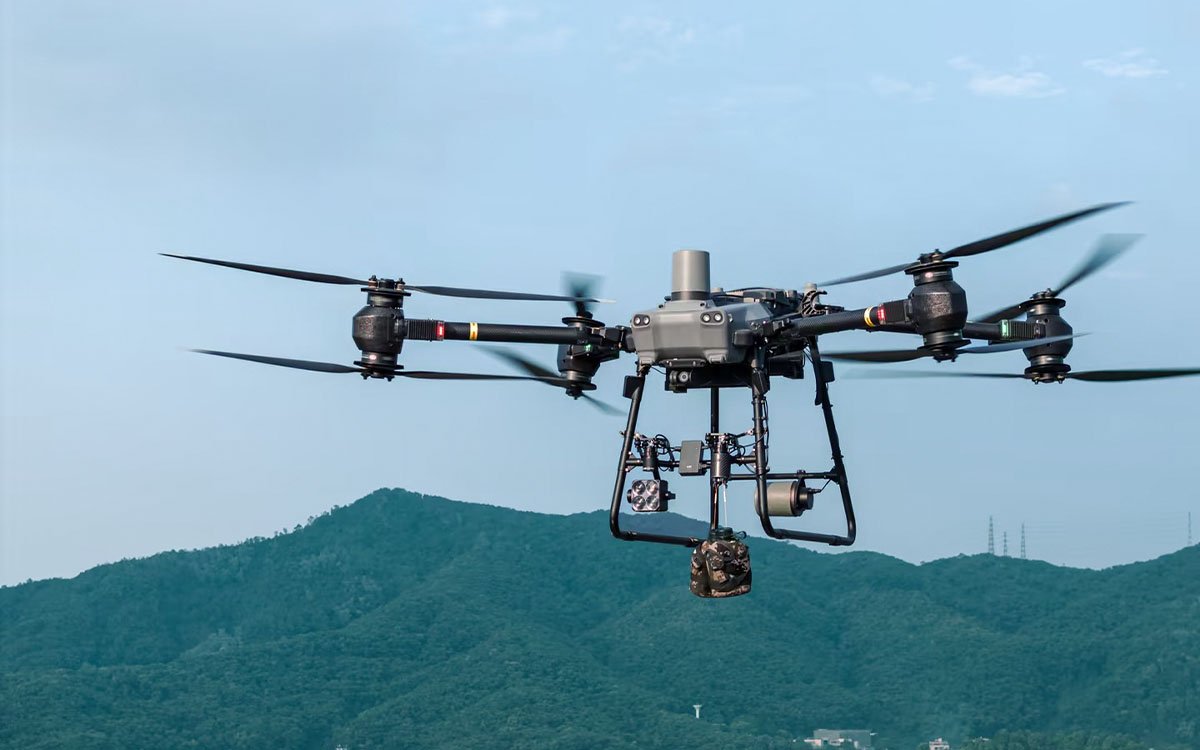

For public safety and logistics professionals, the FS32 acts as a reliable dual-gimbal drone payload system that streamlines complex missions. As a robust DJI FlyCart 30 payload integration kit, it allows teams to equip the drone with a powerful multi-function searchlight and speaker combo for night search-and-rescue operations. When paired with the TH4C, it further functions as a professional precision supply drop drone system, ensuring that critical medical and emergency supplies are delivered accurately to isolated or disaster-stricken areas.
Key Features & Payloads

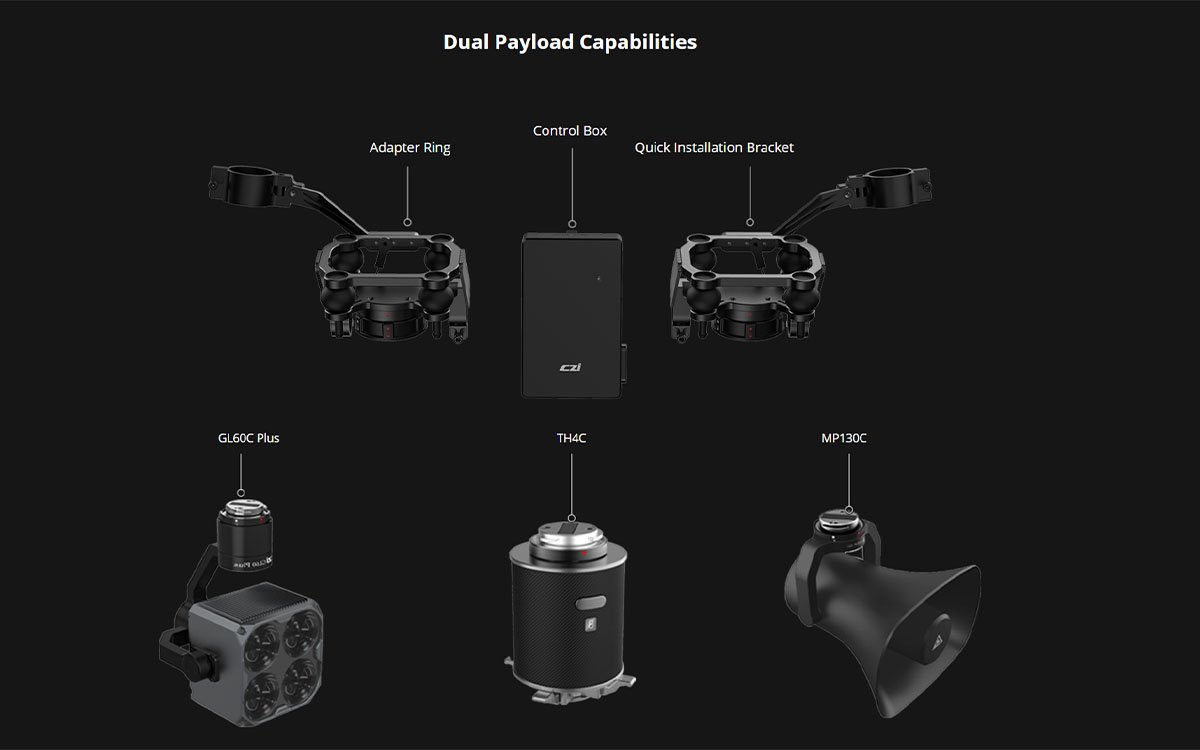

🚁 Dual Payload Capabilities — Configure as Needed
- Left Gimbal Interface: Supports only the GL60C Plus searchlight.
- Right Gimbal Interface: Interchangeable, supports either the MP130C loudspeaker or the TH4C drop system based on mission requirements.
🔦 GL60C Plus — Powerful Night Illumination

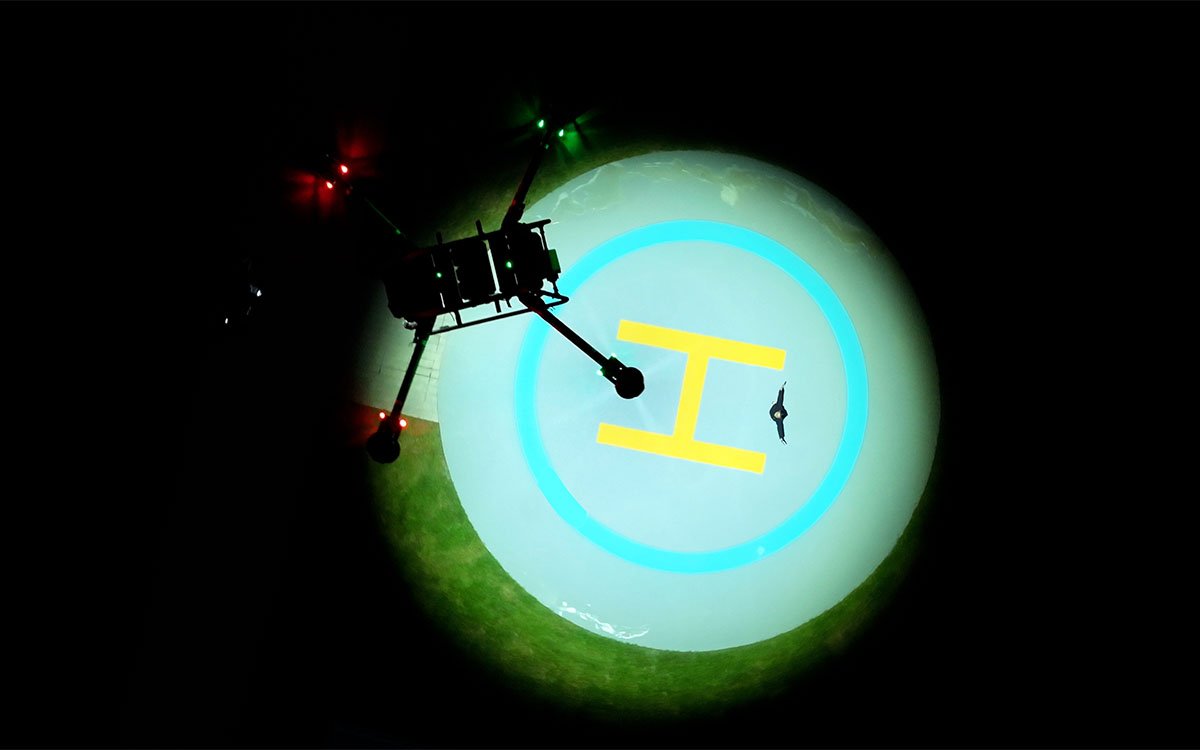

The GL60C Plus is a high-output gimbal searchlight that provides superior nighttime visibility. When combined with the TH4C, it enables precision night dropping operations.
🔊 MP130C — Aerial Broadcasting
The MP130C is a digital voice broadcasting system that delivers clear, powerful audio from the air, ideal for public address, command delivery, and emergency warnings.
📦 TH4C — Precision Dropping System
The TH4C is a lightweight dropping system capable of completing 4 dropping missions in a single flight. Weighing only 320g with a total dropping weight of 2.5kg, it is ideal for deploying medical supplies, daily necessities, and emergency materials.
Product Display
Key System Benefits
- Collaborative Efficiency — Safe and Reliable: The FS32 features convenient control via the DJI Pilot app, with no third-party controller required. The system automatically recognizes connected payloads, simplifying setup and reducing pilot workload.
- Quick Installation for Rapid Mission Execution: The gimbal quick-installation design allows for rapid payload changes, enabling operators to respond quickly to evolving mission requirements.
- Environmental Adaptability: The FS32 system operates reliably in a wide range of environments, with an operating temperature range of -20°C to 50°C, ensuring consistent performance in extreme conditions.
Technical Specifications
| Model | FS32 |
|---|---|
| External Dimension/mm (Control Box) | L:70 x W:30 x H:106 |
| External Dimension/mm (Unilateral Bracket) | L:158 x W:130 x H:135 |
| Material | PC + Aluminum Alloy |
| Installation Method | Quick release |
| Total Weight / g | ≤635 |
| Control | PSDK |
| Rated Input Voltage / V | 60V |
| Total Power / W | 400±10% |
| Output Power at XT30 Terminal / W | ≤300 |
| Operating Environment | Temperature: -20°C+50°C Humidity: 15%-95% |
| Storage Environment | Temperature: -40°C+85°C Humidity: 15%-95% |
| Service Life | ≤Three years |
| Packing | Transit case + EVA liner |
⚡ Specification of FS32 Control Box
| Rated Input Voltage / V | 52.22V-59.92V |
|---|---|
| Total Power / W | ≤400W |
| Rated Voltage at XT30 Output Terminal / V | 24V |
| Maximum Power at XT30 Output Terminal / W | ≤300W |
| Rated Voltage at Type-C Output Terminal / V | 17V |
| Rated Power at Type-C Output Terminal / W | 70W |
📌 Seamless Integration with FlyCart 30: The FS32 is specifically engineered for the DJI FlyCart 30 platform. Its plug-and-play design, combined with automatic payload recognition, minimizes ground time and allows operators to focus on the mission at hand.
Downloads & Support
📄 Firmware & Manuals
- FS32 Firmware — Latest version + Release Notes
- User Manual — FS32 User Manual (Available for download)
- Payload Compatibility Guide — Supported payload list and integration notes
⚡ All technical data sourced from official CZI product documentation. The FS32 is specifically designed for the DJI FlyCart 30 platform. For the most current information, please refer to the manufacturer’s website. Explore more drone delivery systems in our store.
